Developed for the acquisition and processing of fluoroscopic images, compatible with composite video signals under CCIR and EIA standards. It is perfectly adaptable to C-arm and x-ray tilt table equipment.

System compatibility allows easy connection to a wide variety of equipment makes and models, such as Siemens Siremobil, GE Stenocsop, GE OEC, Phillips BV, .Ziehm Exposcop, etc.

Microvision Classic offers you a wide variety of filters and functions on an intuitive and user-friendly graphical interface.

Image Processing

Among its main image processing qualities are; Image subtraction and Roadmapping. Recursive filter, edge enhancement, brightness, contrast and gamma adjustment, as well as image rotation, negative and mirror image inversion. It also has key shortcuts to control these functions.

You will also have the possibility to control the functions remotely from your smartphone or tablet through the My C-Arm application for android.

During the study you can capture the number of images you want and record the videos that are necessary, being able to reproduce both the captured images and the recorded videos.

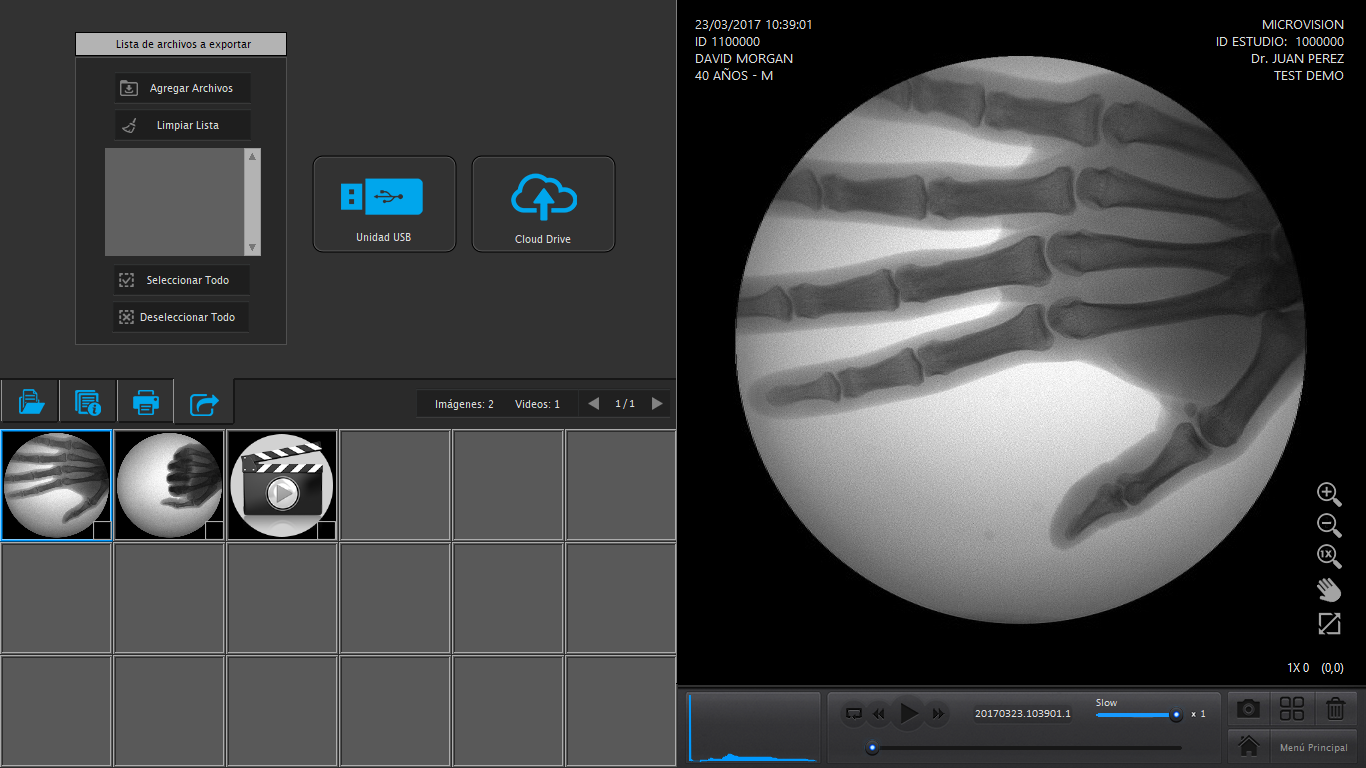

At the end of the study, you will have the possibility of transferring the studies to a Pendrive both in multimedia format and in DICOM format, in which case a DICOM viewer is included for viewing the study.

Microvision Classic, has the "Study Viewer" mode, it includes the database of all the studies with their respective image and video captures. You can also make use of various functionalities.

Data sheet

• Languages: English, Spanish, Portuguese and French
• Composite Video Input
• CCIR and EIA Video Standards
• Maximum capture rate 25fps and 29.97fps
• 576 x 576p acquisition matrix
• HDMI output for a Monitor with resolution 1366 x 768 px
• Output resolution 1366x768px
• Recursive filter x2, x4, x8 and x16
• Movement detector
• Edge enhancement filter x1 and x2
• Image rotation
• Image Subtraction
• Roadmapping
• Mirror investment: horizontal and vertical
• Positive and negative image inversion
• Real-time brightness, contrast and gamma adjustment
• Keyboard shortcuts for acquisition functions
• My C-Arm, android application to control functions via bluetooth
• On-screen text OSD
• Image Capture
• Video recording
• Studio recording on Pendrive, includes DICOM viewer for image viewing.
• Study viewer mode, with database
• Multimedia controls for Study viewing
• Capture image from video

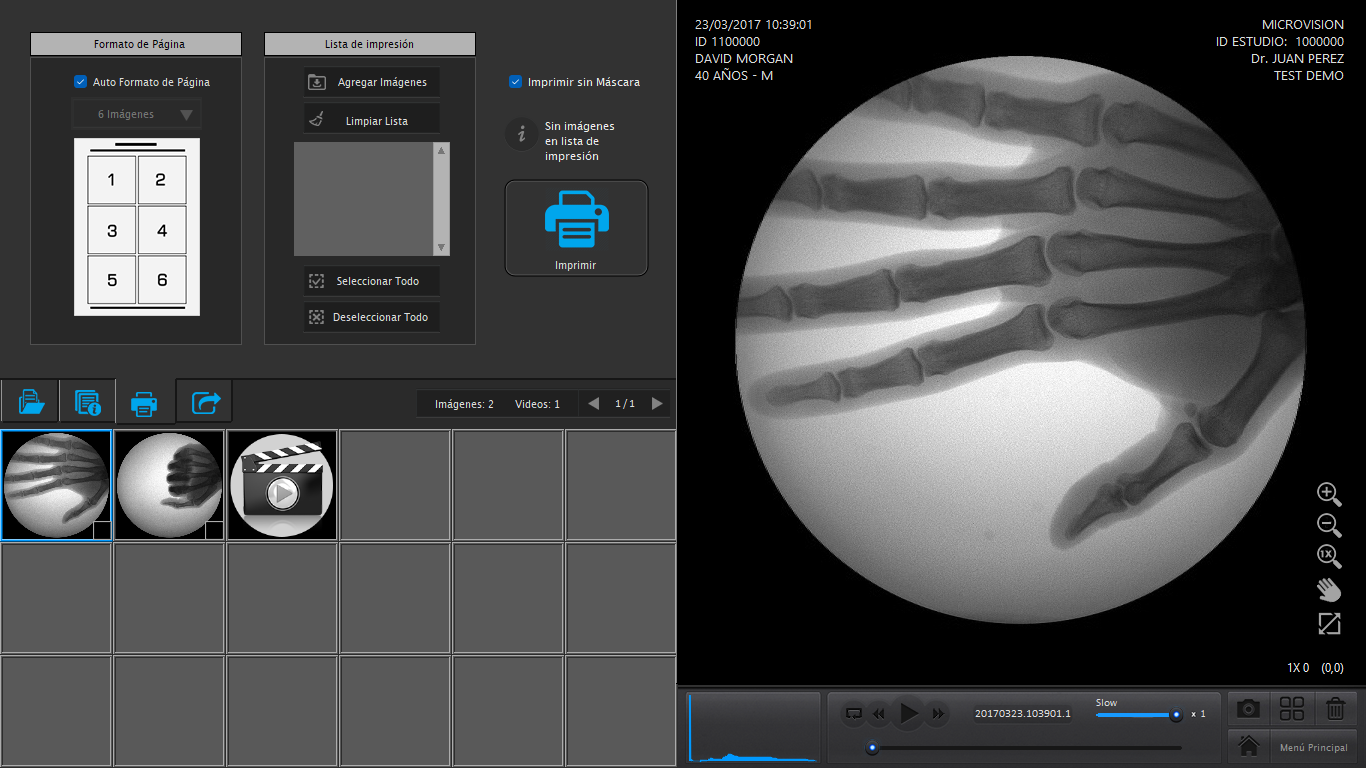

• Image Printing
